PAILI - Elegantly Designed More Fashionable And Luxury 7 Inch Touch Screen Capacitive Monitor Smart Intercom System - Aluminum Alloy

Product Features:

Outdoor station

• Aluminum alloy panel design with rain cover.
• Proximity access control.
• Multi entry stations are supported.
• Compatible with all 2-wire system models.
• Available for electronic lock and N/O lock signal.
• Installation: Surface mounting.
• Dimension:178(H)x98(W)x65(D)mm.

Product specifications:

• Camera: HD camera
• Lens: 1.0MP 3.6mm
• Resolution: 700 TV Lines
• IR LED: 6pc
• Power Supply: DC 15
• Power Supply: Standby <0.5W; working <10W
• Wiring: 2 Wires (RVV2*0.5mm)
• Installation: Flush-Mounted
• Talking Time: 60Sec
• Monitoring Time: 60Sec
• Operating Temperature: -10°C ~ +60°C
• Gross weight: 0.65kg
• Dimension:
  > 175(H)×98(W)×65(D)mm
  > 6.9 (H)×3.9 (W)×2.6(D)in
• Embeded Dimension:
  > 145(H)×80(W)×35(D)mm
  > 5.7 (H)×3.1 (W)×1.4(D)in

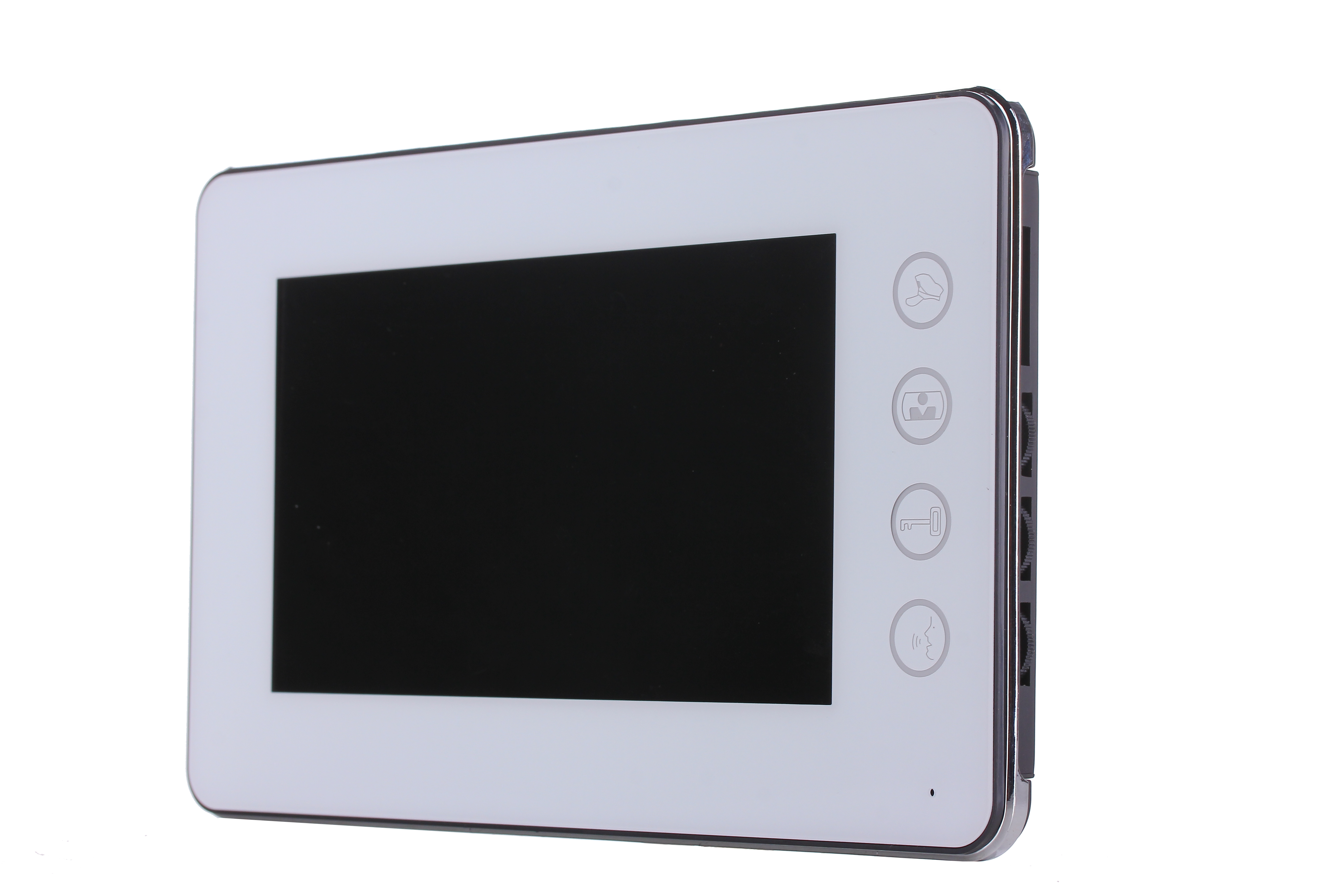

Product Features: Indoor Monitor

• 7 inch color TFT screen.
• Mirror-polished Panel.
• Sensitive touch sensor button with soft backlight.
• 9pcs 8-chord Melodies for choose freely.
• Compatible with all 2-wire door station.
• Picture memory for optional
• White and black housing for optional.

Product specifications:

• Screen: 7" digital TFT screen
• Resolution: 800*480 pixels
• Power Supply: DC 15V
• Power Consumption: Standby 1W, working status 8W
• Wiring: 2 Wires
• Installation: Wall Mounted
• Ringtone: 9 types
• Talking Time: 60Sec
• Monitoring Time: 60Sec
• Operating Temperature: -10°C ~ +60°C
• Gross weight: 1Kg
• Dimensions:
  > 240(H)×160(W)×28(D)mm
  > 6.3 (H)×9.4 (W)×1.1(D)in
